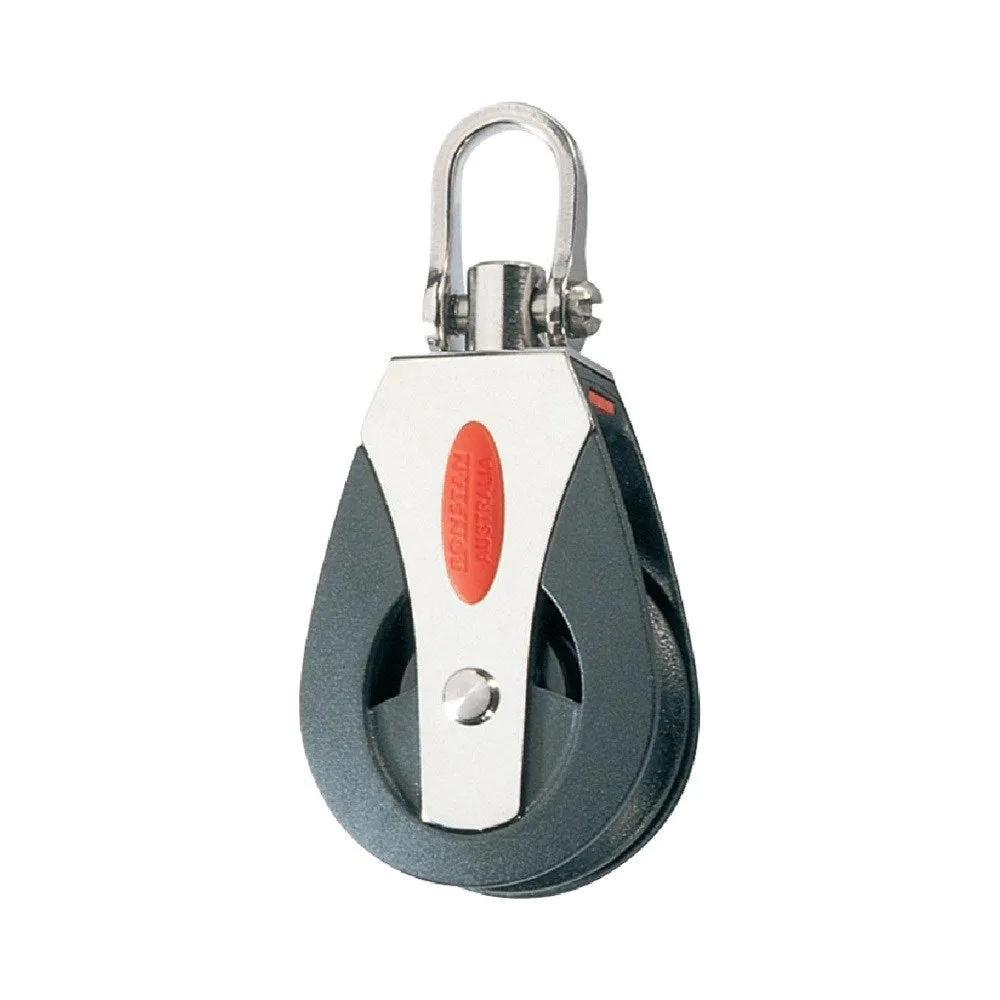

Ronstan Series 40 Special Purpose Single Utility Block (with Nylatron Sheave), Universal Head - RF40100HL
- Exceptionally high working loads
- Lightweight
- Cheek cut-outs for easy bearing maintenance
- Suitable for both rope or wire
- Captive Lock universal head
- Slotted pin shackle eliminates fouled lines
Applications
- Halyards
- Backstays
- Vang
- Spinnaker control lines on off-the-beach catamarans, one design classes and sportsboats up to 8 m (26ft)
Materials
- Nylatron sheave
- Grade 316 stainless steel load strap and head fitting
- Impact and UV resistant, fibre reinforced Nylon cheeks
Specifications
- Sheave Ø: 40 mm
- Max. Rope Ø: 10 mm
- Max. Cable Ø: 4 mm
- Pin Ø: 5.0 mm
- MWL: 500 kg
- BL: 1000 kg
- Weight: 69 g
